Introduction

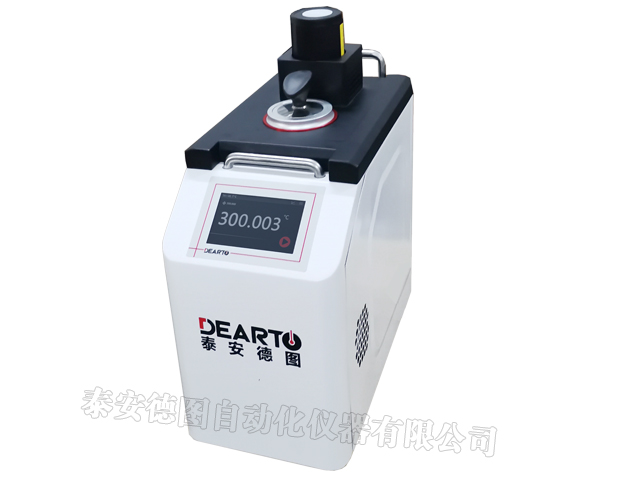

DTS-BG Ultra-Portable Medium Temperature Liquid Calibration Bath is a kind of high precision automatic temperature calibration device, which has the characteristics of stable performance, uniform temperature field, accurate temperature control, etc. Fully enclosed refrigeration system, intelligent PID adjustment to achieve automatic temperature control.
DTS-BG intelligent calibration bath is compact in structure, light in weight and easy to carry. It is suitable for on-site verification/calibration of all kinds of temperature sensors.(Special index products can be customized according to requirements)
Technical index
Product name | Ultra-portable calibration bath | |
Model | DTS-300BG calibration bath | DTS-180BG calibration bath |
Temperature range | 60℃~300℃ | 60℃~180℃ |
Control method | Touch screen | |
Temperature fluctuation | ≤±0.02℃（60℃） ≤±0.02℃（100℃） ≤±0.03℃（200℃） ≤±0.035（300℃） | |
Temperature uniformity | ≤0.01℃（60℃） ≤0.01℃（100℃） ≤0.02℃（200℃） ≤0.02℃（300℃) | |
Power | 1KW | |
Display resolution | 0.001℃ | |
Work area size（mm） | Φ80×280 | |
Dimensions（mm） | 430(L)×228(W)×365(H) | |
Working medium | Silicone oil | |
Remarks | Flange size can be customized according to customer needs | |

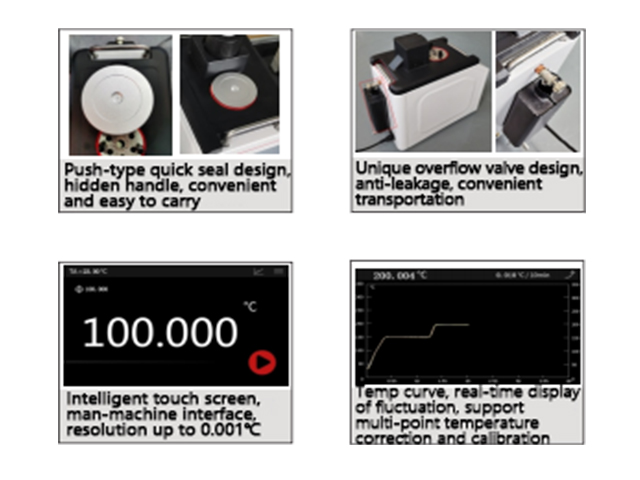

Features | Sealed construction:Push-type quick seal design, anti-leakage, convenient on-site transportation | |
Hidden handle:Hidden handle design, convenient and easy to carry | ||
Intelligent touch screen:Smart touch screen, human-computer interaction interface, multi-function display window, support multi-touch | ||
Real-time curve display:Real-time display of temperature curve and automatic calculation of fluctuation | ||
Multi-point calibration and correction:Support multi-point temperature calibration and correction; automatic temperature control in sections, rapid heating | ||
Safe and reliable:With overheating protection, heating limit function, safe and reliable | ||
Communication function:With RS-232 communication interface, can be connected to the upper computer | ||
